Ruggedized Data Storage Systems

Kaman manufactures ruggedized avionics modules for the transfer and storage of mission- and flight-critical data. These Data Transfer Units interface with the cockpit host computer via industry standard SCSI, MIL-STD-1553 and Ethernet data busses.

Kaman DTUs use PCMCIA and SATA flash memory devices to transfer data between mission planning and aircraft maintenance ground stations and the cockpit. We provide total life-cycle support to these systems, many of which remain in operation after 20 years of service in the harshest fixed- and rotary-wing aircraft flight environments.

data transfer units

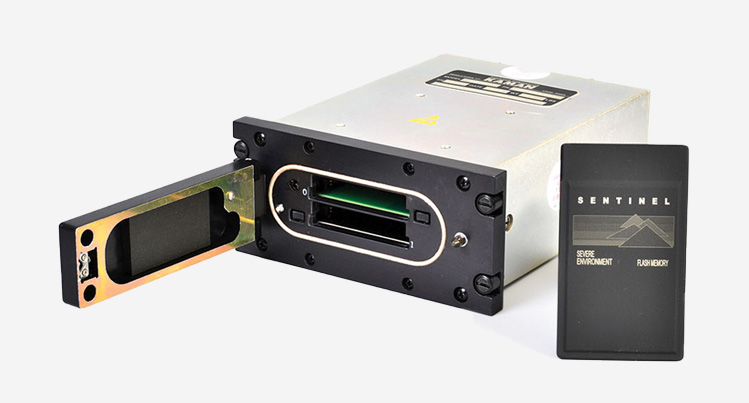

Data Transfer Units

Model 9410 DTU

  • HV differential SCSI interface
  • 2 SENTINEL PC card slots
  • 64 GB capacity
  • 1.5 MBps throughput

Model 9450 DTU

  • MIL-STD-1553 interface
  • 2 SENTINEL PC card slots
  • 4 GB capacity
  • 40 KBps throughput
sentinel pc cards

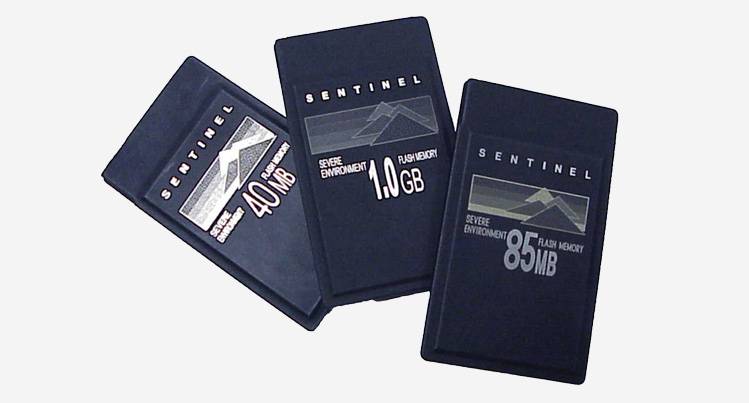

Sentinel PC Cards

  • Rugged flash memory
  • 40 MB to 32 GB capacity
  • PCMCIA Interface
  • Hermetically sealed in stainless steel
  • 20 MBps throughput
  • Supports declassification commands for data erasure
data transfer devices

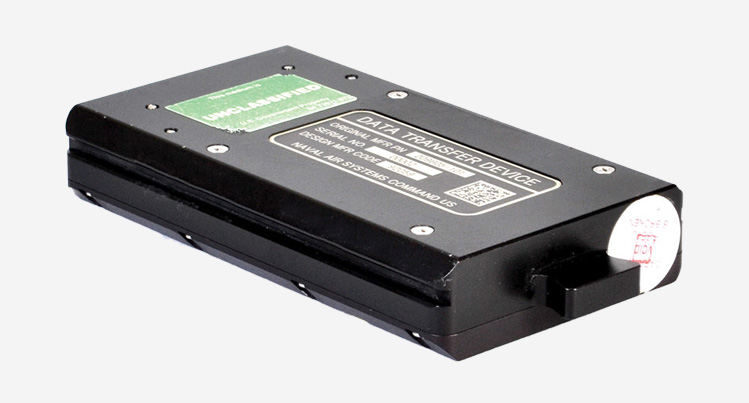

Data Transfer Devices

  • 2.5-inch SATA II flash drive
  • For use with Kaman Model 9660 multi-port DTS
  • 24 GB to 64 GB capacity
  • Rugged aluminum housing
  • 150 MBps throughput
  • Emergency clear and purge capabilities
ground station adapter

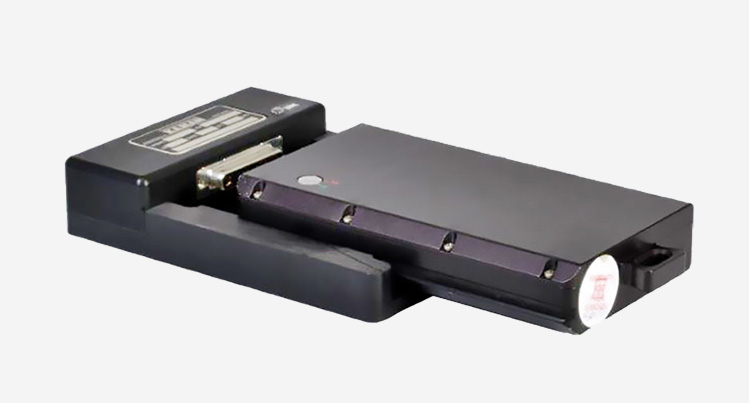

Ground Station Adapter

  • For use with Kaman Data Transfer Device
  • USB interface
  • Up to 128 GB capacity
  • 20 MBps throughput
